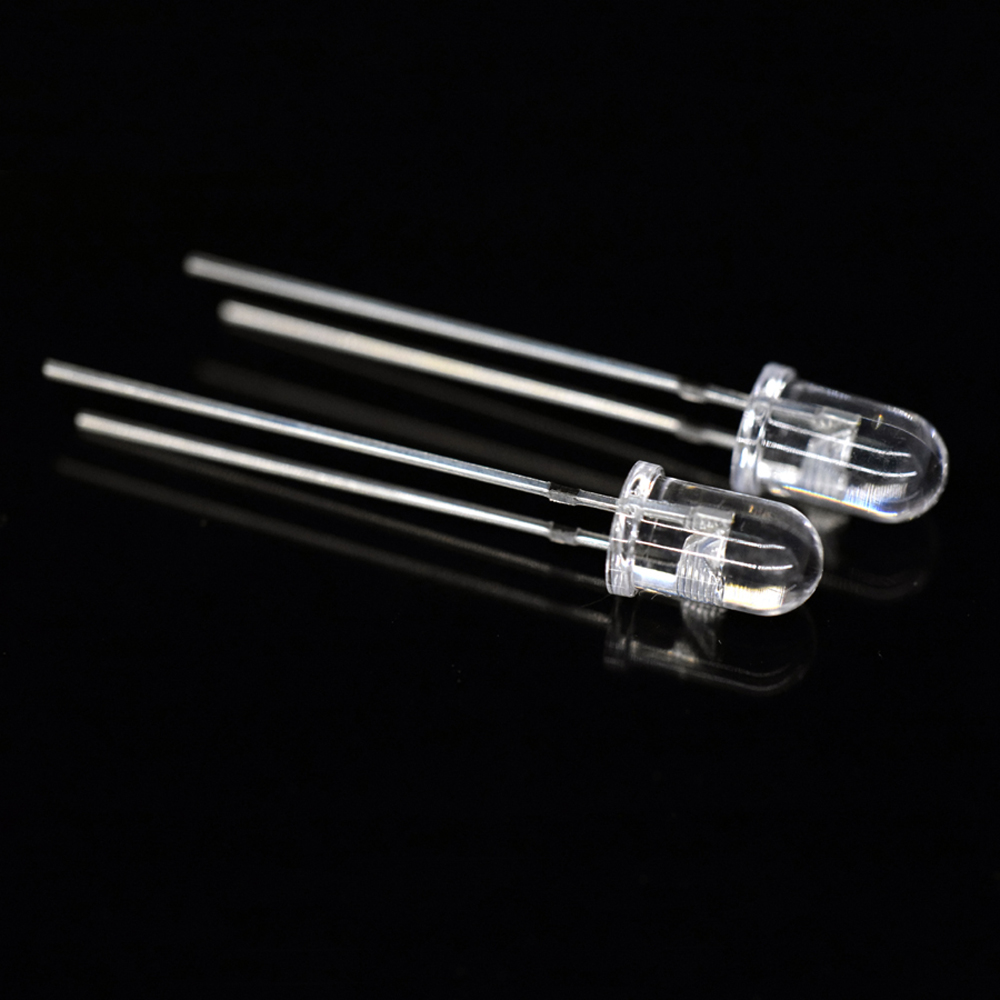

- Taille de 5 mm à travers le trou -

- Radiant LED à travers -

* Les couleurs de la photo ont été prises par l'appareil photo, veuillez prendre une couleur d'émission réelle en standard.

- Paramètre LED à travers le trou -

Parameter	Symbol	Rating
Power Dissipation	Pd	200mw
Pulse Forward Current	IFP	300mA
Forward Current	IF	100mA
Reverse Voltage	VR	5V
Junction Temperature	Tj	115°C
Operating Tempertature	Topr	-40 - +80°C
Storage Tempertature	Tstg	-40 - +100°C
Soldering Temperature	Tsol	260°C
Electro-Static-Discharge(HBM)	ESD	3000v
Warranty	Time	5Years
Antistatic bag	Piece	1000Back
*Pulse Forward Current Condition:Duty 1% and Pulse Width=10us.
*Soldering Condition:Soldering condition must be completed with 3 seconds at 260°C

Caractéristiques optiques et électriques ( t c = 25 ℃ )

Parameter	Symbol	Min	Typ	Max	Unit	Test Condition
Forward Voltage	VF	1.5	1.6	1.8	V	IF=20mA
		1.8	1.9	2.1	V	IF=60mA
		1.9	2.1	2.4	V	IF=100mA
Luminous Flux	Φ		0.01		lm	IF=20mA
			0.06		lm	IF=60mA
			0.1		lm	IF=100mA
Luminous Power	PO	10		20	mw	IF=20mA
		30		45	mw	IF=60mA
		60		80	mw	IF=100mA
Radiant Intensitye	Ee	50		80	mw/sr	IF=100mA
Peak Wavelength	λP	800	805	810	nm	IF=20mA
Half Width	Dl		25		nm	IF=20mA
Viewing Half Angle	2q1/2		±22		deg	IF=20mA
Reverse Current	IR			5	uA	VR=5V
*Luminous Intensity is measured by ZWL600.
*q1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
*lD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.

* Afin de conserver chacune des longues vies de LED, les bêtises utilisent un fil d'or pur élevé pour la connexion du circuit intérieur
